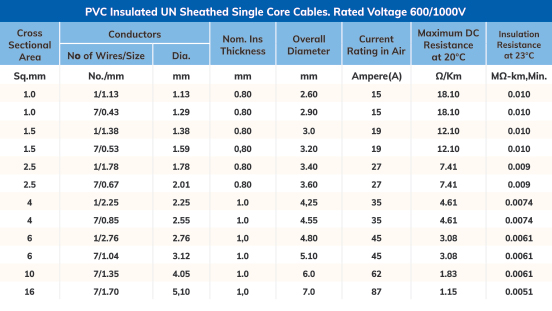

Single Core Solid/Stranded PVC Insulated Unsheathed Wire
Heavy Duty Applications common wiring, Industrial wiring conduit, protected installation in switchgear, lighting and appliances.
PRODUCT SPECIFICATION
Standard
SANS 1507-2, IEC 60227, BS 7211
Conductor
Solid Class-1 Copper Conductor as per SANS 1411-1 Stranded Clas-2 Copper Conductor As per SANS 1411-1
Insulation
General Purpose for PVC Type-D2 (70°c) and High Temperature D5 (105°c) -1411-2
Voltage Rating: 600/1000 Volts Temperature Rating -15°C To 105°C
Wire Outer Dia > 8 mm: 4x Wire Outer Dia
Wire Outer Dia > 8-12 mm: 5x Wire Outer Dia
Wire Outer Dia > 12 mm: 6x Wire Outer Dia
Packing Length
≤ 16.0 Sq.mm -100 mts
≥ 16.0 Sq.mm – 500mts
Single Core Flexible PVC Insulated Unsheathed Wire
Heavy Duty Applications common wiring, Industrial wiring conduit, protected installation in switchgear, lighting and appliances.
PRODUCT SPECIFICATION
Standard
SANS 1507-2, IEC 60227, BS 7211
Conductor
Flexible -5 Copper Conductor as per SANS 1411-1
Insulation
General Purpose for PVC Type-D2 (70°c) and High Temperature D5 (105°c) -1411-2
Voltage Rating: 600/1000 Volts Temperature Rating -15°C To 105°C
Wire Outer Dia > 8 mm: 4x Wire Outer Dia
Wire Outer Dia > 8-12 mm: 5x Wire Outer Dia
Wire Outer Dia > 12 mm: 6x Wire Outer Dia
Packing Length
≤ 16.0 Sq.mm -100 mts
≥ 16.0 Sq.mm – 500mts
